Assembling the DMX case

DMX case

Included

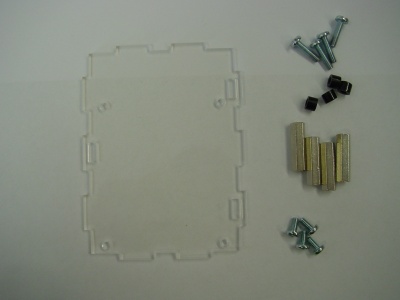

Included screws and spacers

7x M3X6 6+1 screw
4x M2.5x10 screw
4X M2.5X12MM (If we're our of 12mm, we'll send 16mm)
M2.5x4MM spacer
4X M2.5X20MM FF spacer
4X M2.5X6MM  screw

OLD:

We've switched from M3 sized screws that you have to force through the RPI to M2.5 as was intended by the RPI people.

10x m3x6
 4x m3x12
 4x m2.5x10
 4x m3x4mm spacer
 4x m3x20mm spacer

Step 1

4x m2.5x6
4x m2.5x12
4x m2.5x4mm spacer
4x m2.5x20mm spacer

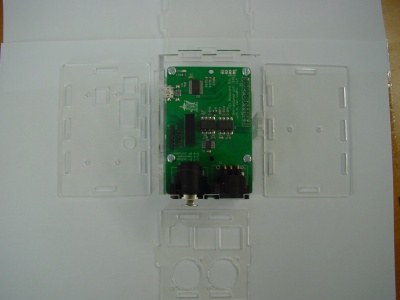

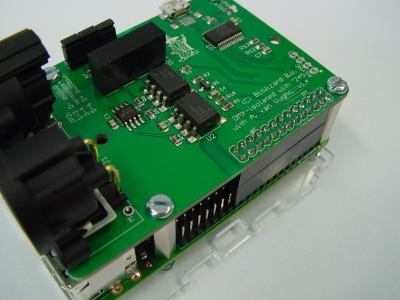

DMX case - step 1

DMX case - step 1

DMX case - step 1

DMX case - step 1

Step 2

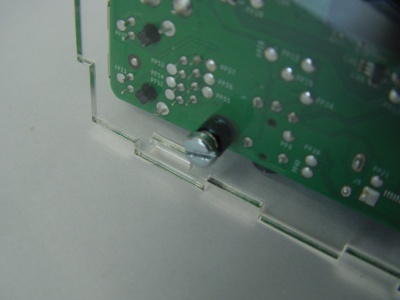

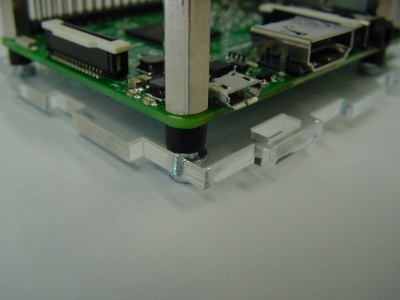

DMX case - step 2

DMX case - step 2

DMX case - step 2

Step 3

6x m3x6
4x m2.5x10

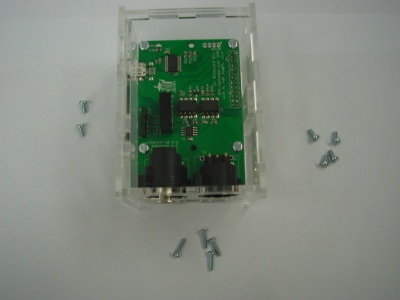

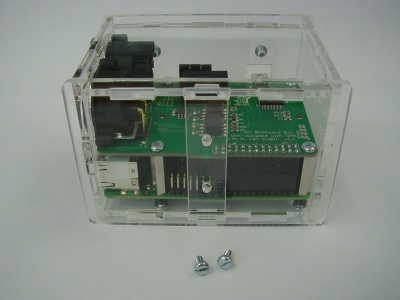

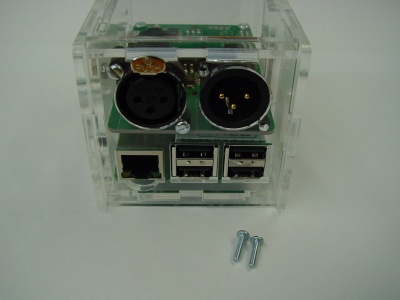

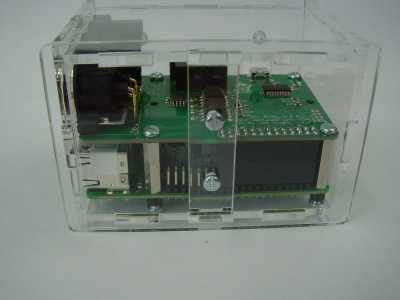

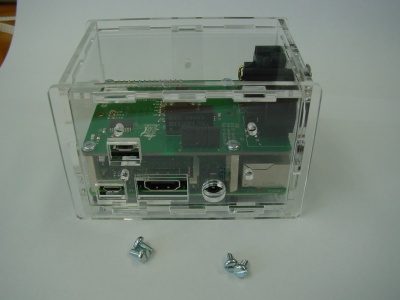

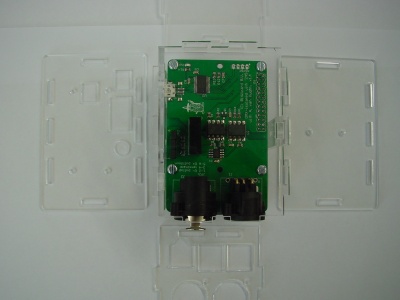

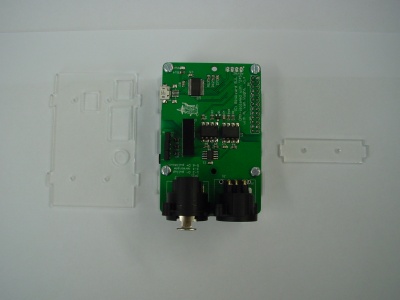

DMX case - step 3

DMX case - step 3

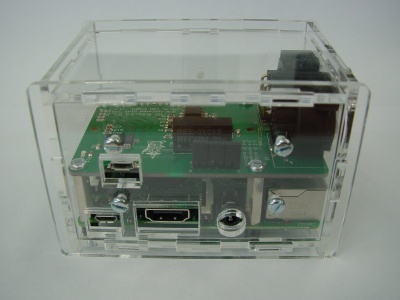

DMX case - step 3

DMX case - step 3

DMX case - step 3

DMX case - step 3
